Double Layer Roll Forming Machine with 15m/min Speed, 1250mm Width, and Chain Drive for Metal Roofing

Brand Name : HC

Model Number : HC18-35-1250

Certification : CE

Place of Origin : China

MOQ : 1set

Price : 12000-17000USD

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Thickness : 0.3-0.6mm

Material Width : 1250mm

Roller Stations : 15stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Diameter of Shaft

Cutter Material : Cr12

Drive Type : Chain Drive

Speed : 15m/min

Total Power : 5.5+5.5kw

Voltage : 380V 50Hz 3phases(Customizable)

Contact Now

Aluminium Cold Roof Sheet Double Layer Roll Forming Machine

Working Speed: 8-10 M/Min

Product Overview

Double layer roll forming machine capable of forming limited site areas in two sections with quick product transformation. This affordable solution combines two models into one unit, reducing plate replacement time and increasing output rate.

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1250mm
Roller Stations	Upper: 15 Stations; Down: 15 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component Specifications

Component	Description & Specifications
5T Manual Decoiler	Supports coil and enables rotary movement. Bearing capacity: 5T Inner diameter: 470-530mm (adjustable) Equipped with brake device to prevent machine damage
Feeding Table & Pre-Cutter	Guides coil into correct position and directs to roll forming section. Includes hand pull cutting device for pre-cutting when changing color or thickness.

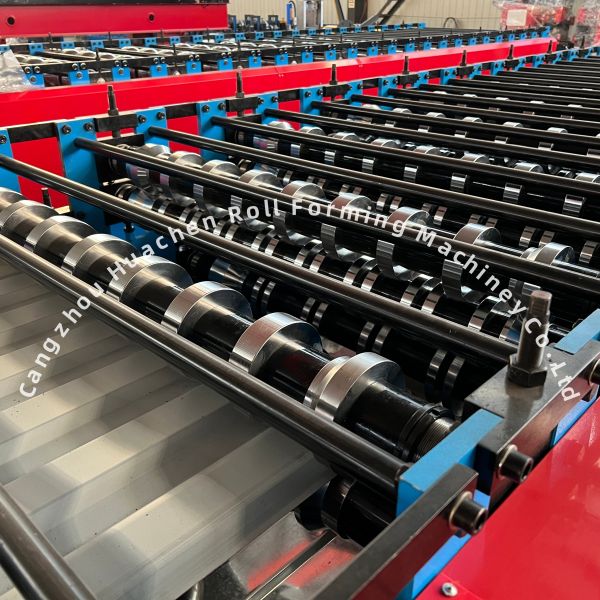

Shaft & Roller	Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant and will not scratch sheets during operation.
Hydraulic Pump Station	Drives cutter for cutting operations. Uses 46# hydraulic oil with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.

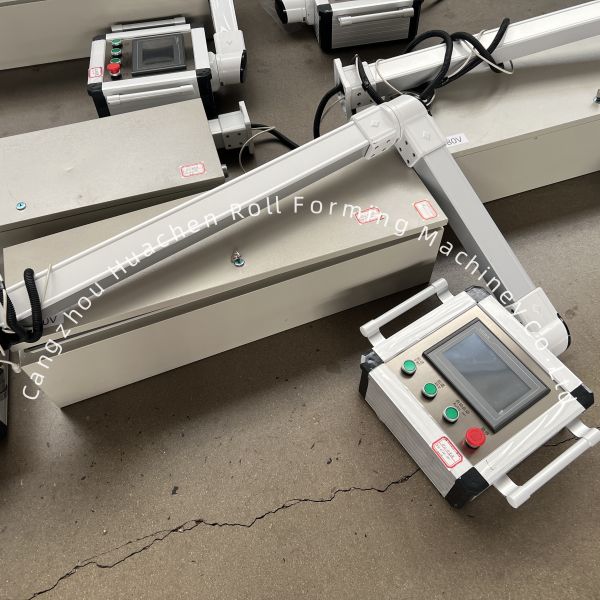

Touch Screen Control Cabinet	Features automatic and manual modes. Allows setting of sheet length and quantity via touchscreen. Electrical components: VFD: Delta Circuit breaker: Delixi Contactor: Delixi Relay: Xinling PLC: Delta Transformer: Delixi
Pressing Section & Cutter	Blade material: CR12 with high strength, excellent hardenability, and superior wear resistance.
Output Table	Collects formed products. Equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included

Part	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Double Layer Roll Forming Machine with 15m/min Speed, 1250mm Width, and Chain Drive for Metal Roofing

Why Choose Our Roll Forming Machine

Custom design and manufacturing of all roll forming machines according to customer specifications
Over 13 years of experience producing durable, high-performance equipment
Superior quality with accurate measurement and easy operation at competitive pricing
Complete technical support including design, production, installation, debugging and maintenance services
Internationally recognized with exports to multiple regions and high customer satisfaction
